Manometr DIN 16270
DN: max 4
PN max. 400
T max 120 ° C
(DIN)
Zawór posiadający śrubę spustową ale bez połączenia testowego |
parts list
| part no. |
designation |
material |
| 1 |
2 |
6 |
| 1 |
body, forged |
A105 |
316Ti |
brass |
| 3 |
spindle roll sealed |
430F |
316Ti |
430F |
| 3.1 |
cone, rolled into, movable |
SS |
316Ti |
SS |
| 4 |
taper ring |
1035 |
316Ti |
brass |
| 6 |
packing |
graphite1) |
PTFE 2) |
| 7 |
gland |
1213 |
316Ti |
brass |
| 8 |
union nut |
1213 |
316Ti |
brass |
| 9 |
handwheel |
moulded plastic 3) |
| 10 |
nut |
steel galvanized |
316Ti |
brass |
| 11 |
vent screw |
430F |
316Ti |
430F |
| 12 Form A |
adjusting nut |
1213 |
303 |
brass
|
| 13 Form B |
nut (DIN 16284) |
A570Gr33,36 |
316Ti |
brass |
| 14 |
nut (DIN 16284) |
1213 |
303 |
brass |
| 15 |
nut (DIN 3870) |
1213 |
316Ti |
brass |
| 16 |
cutting ring (DIN 3861) |
steel
DIN 3859 |
316Ti |
brass |
| M |
0 |
|
|
| type |
body number |
material code |
|
| M=gauge valve |
|
1 Mat.: carbon steel A105
2 Mat.: stainless steel 316Ti
6 Mst.: brass
|
E venting
G bar (instead of handwheel)
H handwheel of steel sheet
K lock nut
PT german TA-Luft
|
| designation |
material |
valve number acc. to DIN |
order number |
picture a
gauge valve DIN 16270 form A |
1020 |
DIN16270-A-10St |
M01EGM12SP12 |
| 316Ti |
DIN16270-A-20St |
M02EGM12SP12 |
picture b
gauge valve DIN 16270 form B |
1020 |
DIN16270-B-10St |
M01EGM12LG12 |
| 316Ti |
DIN16270-B-20St |
M02EGM12LG12 |

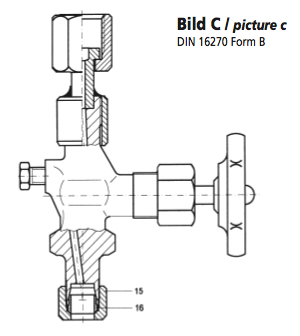

picture c
gauge valve DIN 16270 form B with inlet cutting ring
SV for 12 or 14 mm tubes (DIN 2353)
|
SV 12 |
1020 |
DIN16270-B-10St-AS12 |
M01ESV12LG12 |
| 316Ti |
DIN16270-B-20St-AS12 |
M02ESV12LG12 |
| SV 14 |
1020 |
DIN16270-B-10St-AS14 |
M01ESV14LG12 |
| 316Ti |
DIN16270-B-20St-AS14 |
M02ESV14LG12 |
similar picture c
gauge valve DIN 16270 form B with inlet welding
nipple (DIN 2353)
|
SK 12 |
1020 |
DIN16270-B-10St-AS12 |
M01ESK12LG12 |
| 316Ti |
DIN16270-B-20St-AS12 |
M02ESK12LG12 |
| SK 14 |
1020 |
DIN16270-B-10St-AS14 |
M01ESK14LG12 |
| 316Ti |
DIN16270-B-20St-AS14 |
M02ESK14LG12 |
