Zawory Christian Bollin - rozdzielacze 33

33
DN: max 5 (8)
PN max. 420 (6000psi)
T max 250 ° C
(Ma T 450 ° C z zewnętrznym gwintem )
Trzydrożny zawór z połączonym punktem zerowym. Najczęściej do czujnika różnicy ciśnień. Z pełną blokadą nitek.

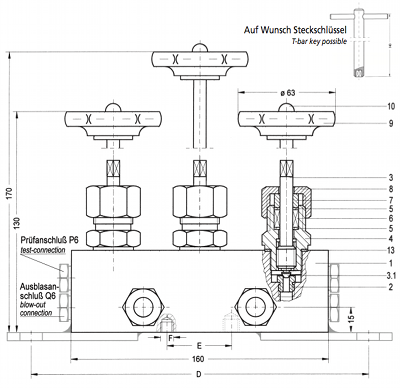

parts list

part no.	designation	material
part no.	designation	1	2	3
1	body	A105	316Ti	A182-F11;F12
2	seat interchangeable	430F	316Ti
3	spindle roll sealed	430F	316Ti
3.1	cone, rolled into, movable	SS	316Ti
4	screwed bonnet housing	1035	316Ti	A182-F11;F12
5	scraper ring	Novapress
6	packing	graphite1)		PTFE2)
7	gland	1213	316Ti	316Ti
8	union nut	1213	316Ti	303
9	handwheel	moulded plastic3)
10	hat nut	galvanized steel	SS
13	seal	mild steel	316Ti

V	33
type	body number	material code	test-/ blow out connection code
V=manifold		1 Mat.: carbon steel A105 2 Mat.: stainless steel 316Ti 3 Mat.: heat resistant steel A182-F 11; F 12	P6 G3/8“ with plug P7 1/2-14 NPT with plug P8 1/4-18 NPT with plug P1 welded stud with M20x1,5 male. cap DIN 16287 form C Q5 G1/4“ with plug Q6 G3/8“ with plug Q7 1/2-14 NPT with plug Q8 1/4-18 NPT with plug	A external spindle thread B fastening female thread F bellow G bar (instead of handwheel) H handwheel of steel sheet L bracket PT german TA-Luft S T-bar key

(karta nr 4116)
